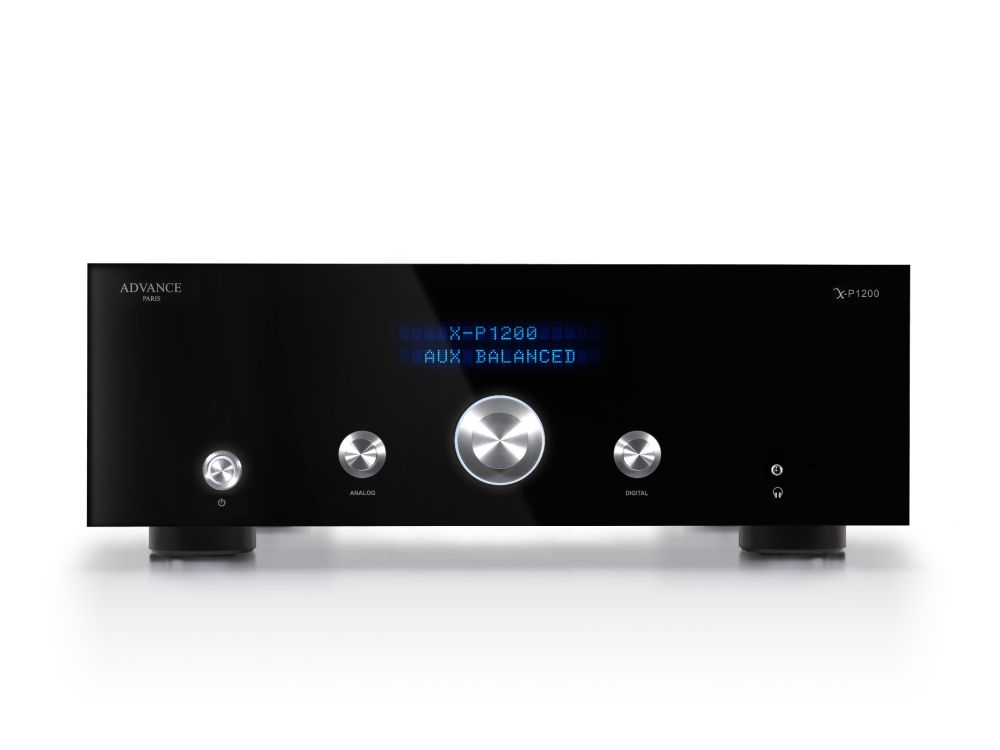

ADVANCE PARIS X-P1200 Dual Mono and Dual Power Supply Pre Amplifier
To meet the expectations of the most demanding music lovers who pay particular attention to the final result of their audio system and who devote a large part of their leisure time to listening to music, we have created the monophonic power amplifier X -A1200.
Respect for your sources
The new X-P1200 preamplifier is the showcase of our know-how. Reference stereo preamplifier, it is in fact composed of two mono preamplifiers assembled in a single compartmentalized box to ensure complete isolation of the various circuits and preamplification stages.
This design ensures better channel separation (crosstalk) and therefore a better stereo effect.
Not only does your X-P1200 have independent right and left channel preamp circuits, but so do their power supplies. that we have chosen to make them totally independent through the use of two transformers.
The X-P1200 is equipped with 9 analog inputs including 2 inputs Balanced XLR., A USB B input (XMOS), 2 coaxial digital inputs and 2 digital inputs. output side, you will have the choice between a balanced XLR type output or unbalanced RCA type. Everything has been thought out to make this preamp the benchmark for best audio systems: mains input with choke filtering and capacitors, two toroidal transformers with high current capacity, filtering composed of 4 capacitors 12000uF / 150V.
The regulation is done by integrated circuits mounted on heat sinks. Concerning the switching of the inputs/outputs, it is done by relay without loss of contact. The symmetrization of the cinch inputs and the desymmetrization is done using quality operational amplifiers of the Burr Brown type.
The processing of digital sources is entrusted to an Analog Device AD-1955 converter. This converter is particularly suitable for high end and SACD applications. The quality of the digital / analog decoding is of very high level with a signal to noise ratio of 123 dB and an audio quality at the top. It is comprised of a multibit sigmadelta modulator, high-performance digital interpolation filters, and continuous-time differential current output DAC.
The playback of audio files from a PC or MAC computer is entrusted to XMOS, a reference solution in the field of quality audio reproduction.
Without a doubt, the X-P1200 will be associated with the X-A1200 mono unit for an exceptional hifi system.
|
Output level 10.5 +/-0.5dB Frequency response 10Hz-150kHz Distortion <0,01% Signal to noise ratio ≥ 110 dB Channel separation ≥ 100 dB Imped. unbalanced input 23KΩ Imped. balanced input 35KΩ IN LEVEL (CD/AUX) < 500mV Phono MM/MC input level 48dB/64dB audio receiver CS8416 AC input 110-230V consumption max. ≤ 30W Transformer 2 Dimensions (W x H x D) 440 mm x 155 mm x 430 mm Net weight 7.1kg. Gross weight 15,6 lbs. DAC AD1955 |
