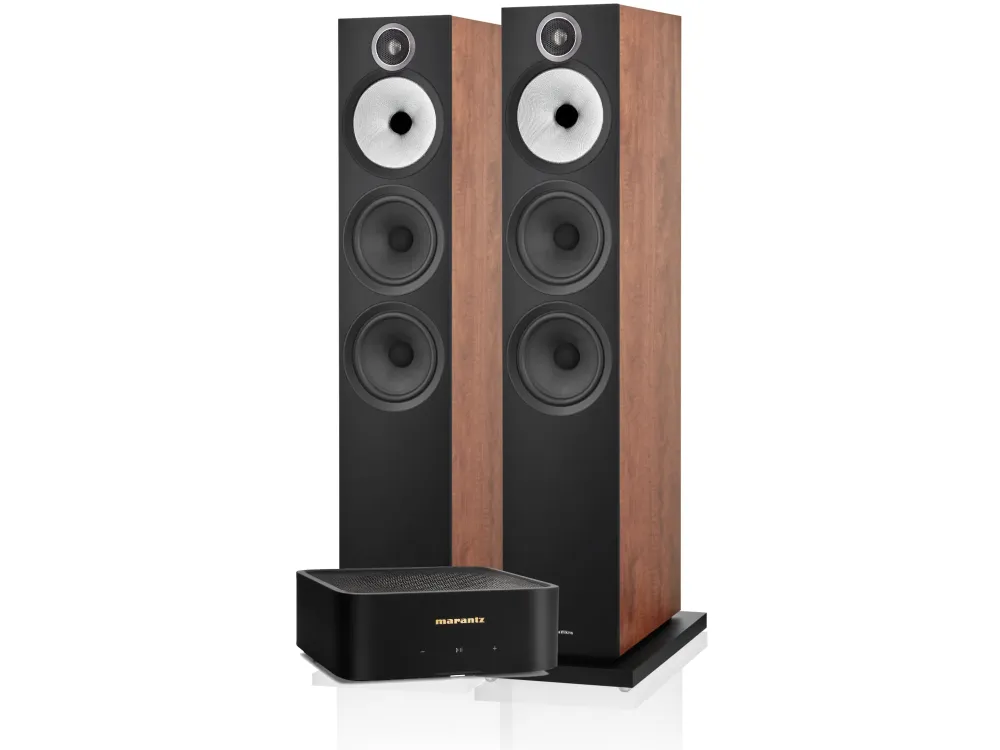

B&W 603 S3 + Marantz Model M1

Premium bundle with B&W 603 S3 speakers and Marantz Model M1 amp for powerful sound and seamless streaming.

$5,099.00

Warranty Period : 5 years

Sold as: 1 Amplifier, 2 Speakers

The 603 S3 is the largest loudspeaker in the 600 Series and is ideal for larger rooms and home theaters. It combines our new Titanium Dome™ tweeter with the accuracy and transparency of our acclaimed Continuum™ cone FST™ midrange driver.

MODEL M1 is a wireless streaming amplifier engineered with performance and versatility in mind. Enjoy your favorite music or TV shows with seamless connectivity from one elegant, compact device.

Features
  • HDMI eARC
  • HEOS Multiroom Music Streaming
  • 100 Watts per channel
  • Amplifier crafted in Shirakawa, Japan
  • 3 Way Floorstanding speakers
  • Titanium Dome Tweeter
Specification
Marantz Model M1

Amplifier

Power Amplifier Rated Output

  • 100W+100W (8Ω/ohms, 20 Hz to 20kHz, T.H.D. 0.05%)

  • 125W+125W (4Ω/ohms, 1 Hz T.H.D. 0.05%)

Loudspeaker Impedance

  • 4 – 16 Ω/ohms

Audio Inputs / Outputs

Loudspeaker Binding Posts

  • 4-way binding posts

Digital Inputs

  • HDMI (eARC)

  • TOSLINK

Analogue Inputs

  • RCA L/R

Subwoofer Out

  • RCA Mono

Audio Options

Channel  Assignments

  • Stereo

  • Dual Mono

Balance

  • -15dB to +15dB

Adjustable High Pass / Low Pass Filters

  • 40-250 Hz / 40-120 Hz

EQ (-5dB to +5dB)

  • Bass
  • Treble

Sound Modes

  • Stereo, Direct, Virtual
  • Dialog Enhancer, Night Mode

 TV Sound Grouping

  • YES

Audio Format Support

Decoding

  • Dolby Digital +
  • Dolby Digital
  • LPCM
  • DSD

PCM

  • Stereo
  • Multi-channel

Stereo File Formats (HEOS network share or USB)

  • WMA: up to and including 192kbps
  • AAC & MP3:up to and including 320kbps
  • WAV, ALAC, FLAC: up to and including 24-bit/192kHz
  • DSD: 2.8 MHz. 5.6 MHz

 Streaming Technologies

Bluetooth

  • BT 5.X (Receive Only)

Airplay

  • Airplay 2

Spotify

  • Spotify Connect

Music Services and Sources

Music Services Supported

  • Spotify Connect
  • TuneIn
  • Amazon Music
  • Tidal Connect, Tidal HiRes
  • Deezer, Deezer HiFi
  • Mood:Mix
  • Sony Hi-Res
  • SoundCloud

Music stored on Mobile Device

  •  Yes (iOS, Abdroid or Kindle Fire)

NAS (Network Attached Storage)

  • Network Share
  • DLNA

USB Storage Device Playback (Formated Drives)

  • FAT32
  • NTFS

Networking & Control

Connectivity

  • Ethernet
  • Dual Band Wi-Fi
  • 802.11 a/b/g/n/ac
  • Bluetooth

IR Input

  • 3.5mm

IR Learning

  • Yes

Control System Compatibility via TCP/iP

  • Crestron
  • Control 4
  • AMX

 HEOS App

  • iOS
  • Android

General

User Interface

  • Volume up / down
  • Play / Pause
  • Multi coloured LED stsyus indicator
  • Connect Button (rear)
  • Bluetooth Buttom (rear)

Dimensions

  • 217mm Depth
  • 239mm Width
  • 84mm Height

Weight

  • 2.2 kg
B&W 603 S3

Description

  • 3-way vented-box system

Drive units

  • 1x ø25mm (1 in) Titanium Dome high-frequency
  • 1x ø150mm (6 in) Continuum cone FST midrange
  • 2x ø165mm (6.5 in) Paper bass cone

Frequency range

  • -6dB 29Hz - 33kHz

Frequency response

(+/-3dB from reference axis)

  • 46Hz - 28kHz ±3dB

Sensitivity

(on axis at 2.83Vrms at 1m)

  • 90dB

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m on axis)

  • <1% 100Hz - 22kHz
  • <0.5% 350Hz - 12kHz

Nominal impedance

  • 8Ω (minimum 3.0Ω)

Recommended amplifier power

  • 30W - 200W into 8Ω on unclipped programme

Max. recommended cable impedance

  • 0.1Ω

Dimensions

(Cabinet)

  • 985mm Height
    • 1020mm with Plinth
  • 189mm Width
    • 260mm with Plinth
  • 328mm Depth (Including Grille and Terminals)
    • 402mm with Plinth

Net weight

  • 27.5kg Each

Finishes

  • Black with Black Grilles
  • Red Cherry with Black Grilles
  • White with Grey Grilles
  • Oak with Grey Grilles
