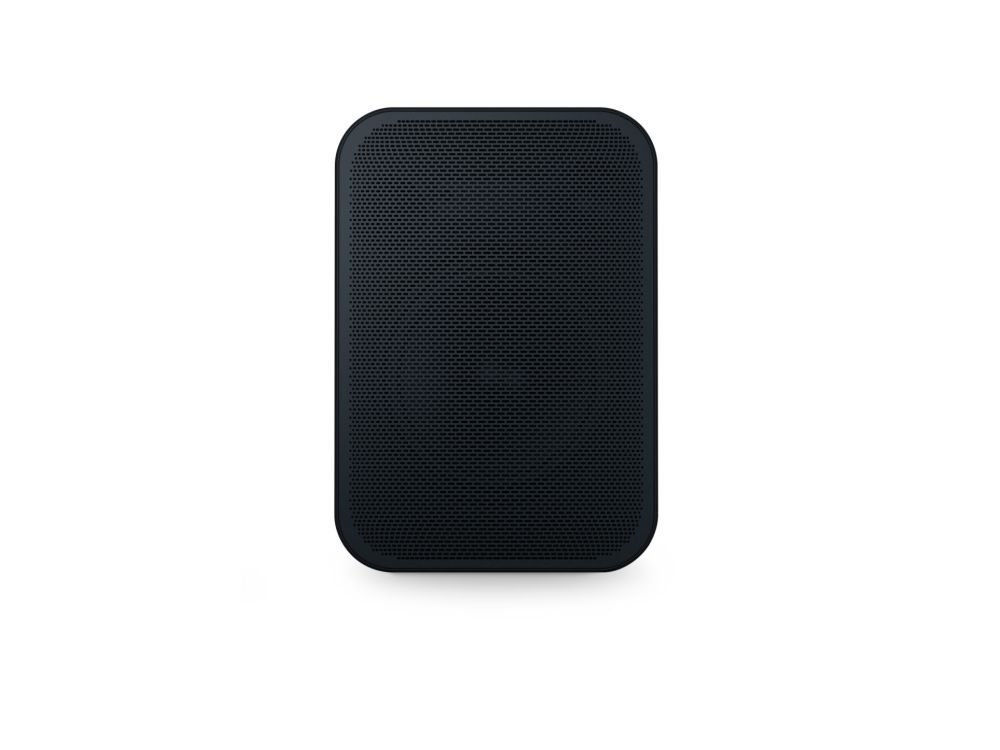

The Bluesound Professional BSP200 is a PoE+ powered network active loudspeaker with integrated streaming capability designed specifically for use in commercial installations. The player in the BSP200 is based on the established BluOS platform and is capable of playing and distributing content from local network storage as well as from a large number of streaming services, including some specifically designed for commercial use, such as SoundMachine, Custom Channels, QSIC, SiriusXM Music for Business and Tunify. As well as stand-alone use, it is possible to use a pair of BSP200 speakers in stereo configuration. Use of the BSP200 in a larger BluOS system is also possible, allowing for grouping into user-definable groups of whatever size is required with other BSP200 units and/or any other connected Bluesound Professional players on the network in an installation.
The loudspeaker features a 3.5” LF driver and a 1” HF driver powered by a 23W high efficiency amplifier including a low power standby mode. The frequency response of the speaker is 45Hz-20kHz and the THD+N of the system is 0.003% at full rated power. Built-in DSP allows for equalization as well as other audio processing. Access to content is via ethernet for glitch-free streaming. A USB input further adds to the capability of the system by providing replay of files stored on connected drives. High efficiency electronics and drive units provide a maximum SPL of 102dB (using PoE+).
Control of the speaker can be accomplished by any Windows/Mac computer as well as any iOS/Android phone or tablet and the Bluesound Professional CP100 wall mount controller. Third party control is also possible with any of the leading systems. Security provisions prevent any unauthorized control of the system.
An optional bracket allows for wall mounting with 40 degrees of swivel and 360 degrees of rotation possible. The PoE power supply makes this player easy to install in minutes with one Ethernet cable and eliminates the cost of providing an AC mains receptacle typical for all powered speakers.
Easily Create Branded Environments
With hardware that supports nearly unlimited zones of audio and a natively-integrated commercially-licensed music streaming service in SoundMachine, Custom Channels, SiriusXM for Business, Qsic and Tunify, Bluesound Professional makes easy work of creating branded environments for your clients.
Seamless Integration with Control Systems
Bluesound Professional’s line of commercial streaming hardware allows flexible control by third-party control systems, and interfaces exist for all of today’s market-leading automation platforms. BluOS®, the multi-zone, music sharing software that underpins all Bluesound Professional players and active speakers, communicates with third-party control systems and platforms so that A/V system integrators, business owners, consultants and system designers can design seamless audio ecosystems to meet the needs of any commercial installation.
Add Audio Streaming to Existing or New Installations
Bluesound Professional’s decentralized processing capabilities gives designers and installers maximum flexibility to add audio streaming to installations, whether existing or new.
Easy to Configure
Self-discovery makes set-up and configuration painless, as Bluesound Professional players placed onto the same network will find each other automatically. A few taps on the intuitive icons in the BluOS Controller app will group players to create zoned audio content and lock-out unauthorized users.
|
AUDIO Supported File Formats MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS Hi-Res formats FLAC, MQA, WAV, AIFF Native Sampling Rates 32 - 192kHz Bit Depths 16 - 24 PERFORMANCE Frequency Response -10db 45Hz-20kHz Distortion THD+N - 0.030% (20hz-20khz at Rated Power) Power Output 23 Watts total system power at 0.030% THD Speakers 1 x 89mm (3.5”) Woofer, 1 x 25mm (1”), Tweeter Supported Operating Systems Plays music from network shares on the following desktop operating systems: Microsoft Windows 2000 and newer and Apple Macintosh 7 and newer. Free Internet Radio TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise, LiveXLive Supported Cloud Services SoundMachine, Tunify, Custom Channels, SiriusXM for Business, Spotify, Tidal, Amazon, Deezer, Qobuz, TuneIn, Radio.com and many others Integration Partners Control4, RTI, Crestron, URC, ELAN, Lutron Album Art JPG Network Gigabit Ethernet RJ45 USB 1 x Type-A port for connection to USB memory sticks (Fat32 or NTFS formatted) and supported peripherals 1 x Type-B (mini) for product servicing Power PoE+ IEEE 802.3 at Type 2(30W) USER INTERFACE Mobile Operating System, BluOS - Free Android and iOS App Available Online at Google Play and Apple App Store GENERAL Processor ARM® CORTEXTM A9, 1 GHz Unit Weight 1.23kg / 2.7lb Gross Dimensions 125 x 183 x 100mm, 4.92 x 7.2 x3.9” Power Consumption (Idle) 14 Watts Storage Environment -10° C to 50° C, 20% to 80% relative humidity Operating Environment - Indoor/Outdoor 0° to 40° C IPXX Rating IP65 (only with port plug installed) Finish Available in White or Black Matte |
