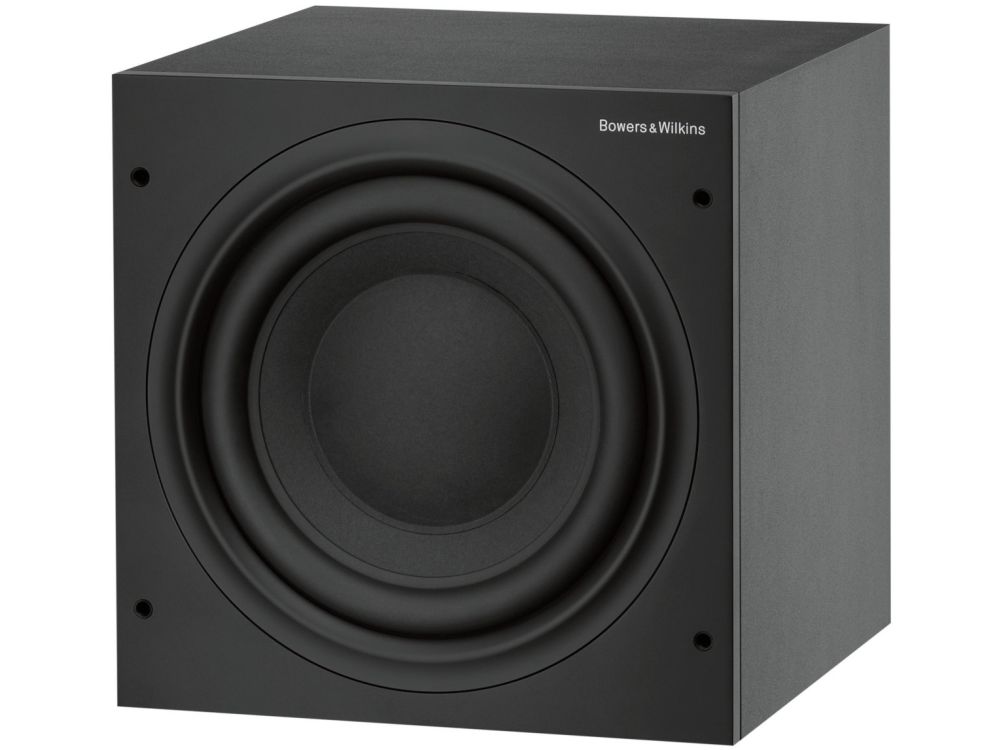

Bowers & Wilkins (B&W) ASW610XP Subwoofer

The ASW610XP, the most powerful of the 600 Series subwoofers delivers the finishing touch or finishing thump to a hi-fi or home theatre system for larger rooms. This has a sealed box enclosure for optimum performance.

$2,199.00

The ASW610XP the most powerful of the 600 Series subwoofers delivers the finishing touch or finishing thump to a hi-fi or home theatre system for larger rooms. Serious bass power is developed in a compact cabinet thanks to the unit's twin 200W amplifiers and dual voice coil long-throw 250mm driver. Equipped with audiophile-standard Class D circuitry the unit remains cool and efficient under pressure.

In all of the 600 Series subwoofers the bass driver diaphragms are constructed from a rugged finely-tuned mix of paper pulp Kevlar® fibres and resin which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet. Ultra-solid construction delivers slamming bass drum kicks and special movie effects. Deformation is minimised; bass precision power and enjoyment are maximised.

Specification

Model

  • ASW610XP

Drive Unit

  • 250mm (10") Paper/Aramid Fiber Cone, Long Throw

Frequency Range

  • -6dB at 18Hz and 25 / 140Hz adjustable (EQ at A)

Frequency Response

  • ±3dB 25Hz – 40 / 140Hz adjustable (EQ at A)

Bass Extension

  • -6dB at 18Hz (position A)
  • -6dB at 23Hz (position B)
  • -6dB at 28Hz (position C)

Power output

  • 500W

Power Consumption

  • 98W
  • 1W Standby

Input Impedance

  • 33kΩ

Signal / Noise

  •  >80dB

Inputs

  •  Stereo line in (RCA Phono)
  •  Speaker in (Binding post)
  •  12v trigger (3.5mm jack)

Dimensions

  • Height:
    • 310mm (not including Spikes or Feet)
    • 322mm (Including Feet)
    • 338mm (Including Spikes)
  • Width:
    • 310mm
  • Depth:
    • 347mm (Not including grilles)
    • 375mm (Including grilles and controls)

Net Weight

  • 18.65kg

Cabinet Finishes

  • Black
  • White

Grille Finishes

  • Black
  • Grey
