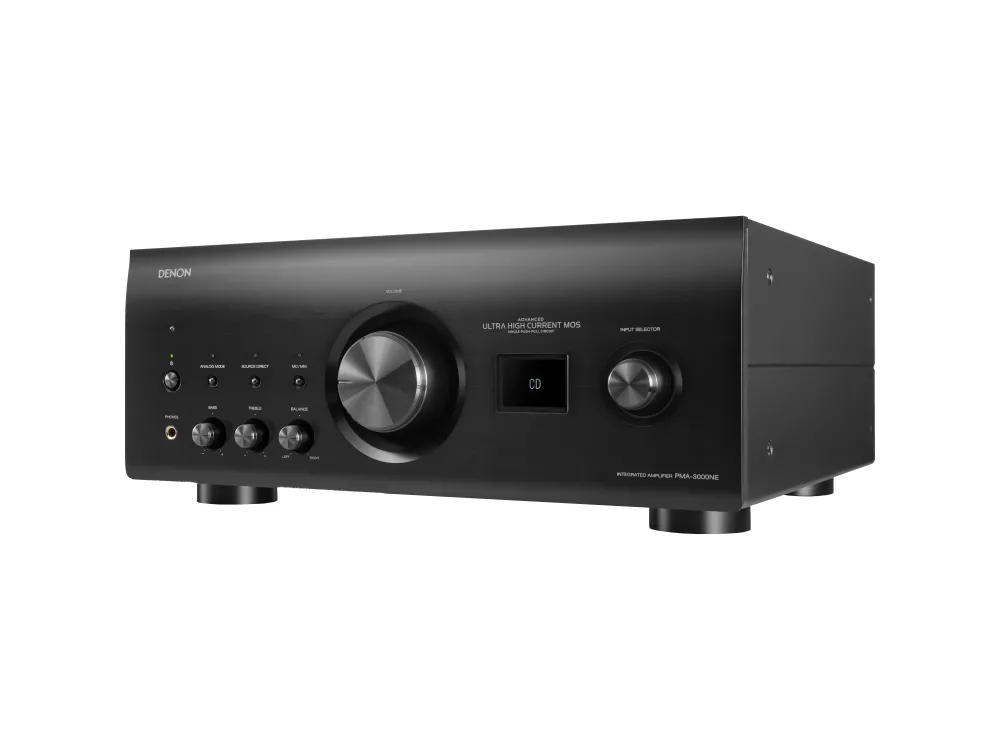

DENON PMA-3000NE Integrated Amplifier

2 Ch. 80W Integrated Amplifier with MM/MC phono stage

The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario.

Designed and manufactured at Denon facilities in Shirakawa, Japan.


$5,999.00

Audio excellence, redefined

With an advanced push-pull amplifier, sophisticated digital processing, and a robust phono stage, the PMA-3000NE delivers all of your favorite music with clarity and precision.

Faithful to any sound source

Drives even the most demanding speakers

A push-pull amplifier, delivering 80W/channel into 8 ohms and 160W/channel into 4 ohms, effortlessly accommodates a range of speaker types and impedances.

Seamlessly integrate high-resolution digital audio

Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32- bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.

Unlock your vinyl collection’s full potential

The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.

Fidelity, form, and function

Advanced Amplifier Design

The PMA-3000NE delivers 80W/channel into 8 ohms and 160W/channel into 4 ohms. Its UHC-MOS Single Push-Pull Circuit and differential 1-stage amplifier drive demanding speakers with exceptional clarity and linearity.

Ultra AL32 Processing

Denon's Ultra AL32 Processing uses interpolation algorithms to produce highresolution output. Supporting input signals up to 384kHz/32-bit, it upsamples for smoother waveforms and improved sound reproduction.

High-performance MM/MC Phono Stage

The PMA-3000NE's phono stage supports both MM and MC cartridges for truest vinyl reproduction in any setup. A high-gain design and “simple and straight” circuitry minimize distortion for pure, detailed sound.

Digital Audio Inputs

The PMA-3000NE’s versatile digital connections, including optical, coaxial, and USB Type B, support up to 384kHz/32-bit and 11.2MHz DSD audio.

Analog Mode

Analog mode bypasses digital circuitry for a pure, all-analog sound. A Source Direct function bypasses the tone controls so that the signal path is as short and clean as possible, for enhanced clarity.

Sonic Innovation
For the Past 110 Years

For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.

Features
  • 2 channels
  • 80 watts per channel
  • MM/MC phono stage
  • Ultra AL32 Processing
  • Optical, coaxial, and USB digital connections
  • Analog mode
Specification
Output Power
  • 80 W + 80 W
    • 8Ohms
    • 20 Hz - 20 kHz
    • T.H.D. 0.07%
  • 160 W + 160 W
    • 4Ohms
    • 1 kHz
    • T.H.D. 0.7%
Total Harmonic Distortion
  • 0.01 %
    • Rated output: –3 dB
    • 8Ohms
    • 1 kHz
Input Sensitivity/Impedance
  • Phono MM
    • 2.5mV / 47kOhms
  • Phono MC
    • 200μV / 100Ohms
  • Analog Inputs
    • 150mV / 15kOhms
Signal to Noise Ratio
  • Phono MM
    • 89dB (Input terminals shorted, 5mV input signal)
  • Phono MC
    • 74dB (Input terminals shorted, 0.5mV input signal)
  • Analog Inputs
    • 107dB (Input terminals shorted)
Frequency Response
  • 5 Hz – 100 kHz (0 – -3 dB)
Phono Specifications
  • RIAA Deviation
    • 20 Hz – 20 kHz ±0.5 dB
  • Max Input
    • MM: 130 mV / 1 kHz
    • MC: 10 mV / 1 kHz
  • S/N Ratio
    • MM: 89dB
    • MC: 74dB
Audio Features
Pre-Amplifier Circuit
  • Variable Gain Preamplifier (OP AMP)
Tone Controls
  • Bass
    • 100 Hz ±8 dB
  • Treble
    • 10 kHz ±8 dB
  • Balance
Source Direct
  • Yes
Analog Amp Mode
  • Yes
DAC Circuit
  • ES9018K2M x4
Digital Processing
  • Ultra AL32 Processing
DAC Master Clock Design
  • Yes
Connectivity
Analogue Inputs
  • 3x RCA Stereo Inputs
    • "CD"
    • "Network/AUX"
    • "Recorder"
  • 1x RCA Stereo External Pre-Amp Input (to use PMA3000NE as power amplifier)
  • 1x Phono MM/MC RCA Input w/ GND terminal
Digital Inputs
  • 3x TOSLink Optical Input
    • Input 1 for TV
    • 24bit/192kHz
  • 1x Coaxial
    • 24bit/192kHz
  • 1x USB-B
    • 32bit/384kHz PCM
    • 11.2MHz DSD
    • Asyncronous Mode
Audio Outputs
  • 2x Sets Speaker Terminals
    • Speakers A or B: 4-16 Ohms
    • Speakers A + B: 8-16 Ohms
  • 6.35mm Headphone Jack (Front)
  • RCA Record Out (Line Level)
Other Connectivity
  • 1x 3.5mm IR in
  • 1x 3.5mm IR out
  • 1x Remote Control Bus terminal (mini)
General
Dimensions
  • 434mm Width
  • 443mm Depth
  • 182mm Height
Net Weight
  • 24.6kg
Finish
  • Black
  • Silver
Power Supply
  • 230V AC, 50/60Hz
    • 400W Consumption PEAK
    • 0.4W Standby (TV Auto Play On)
    • 0.2W Standby
