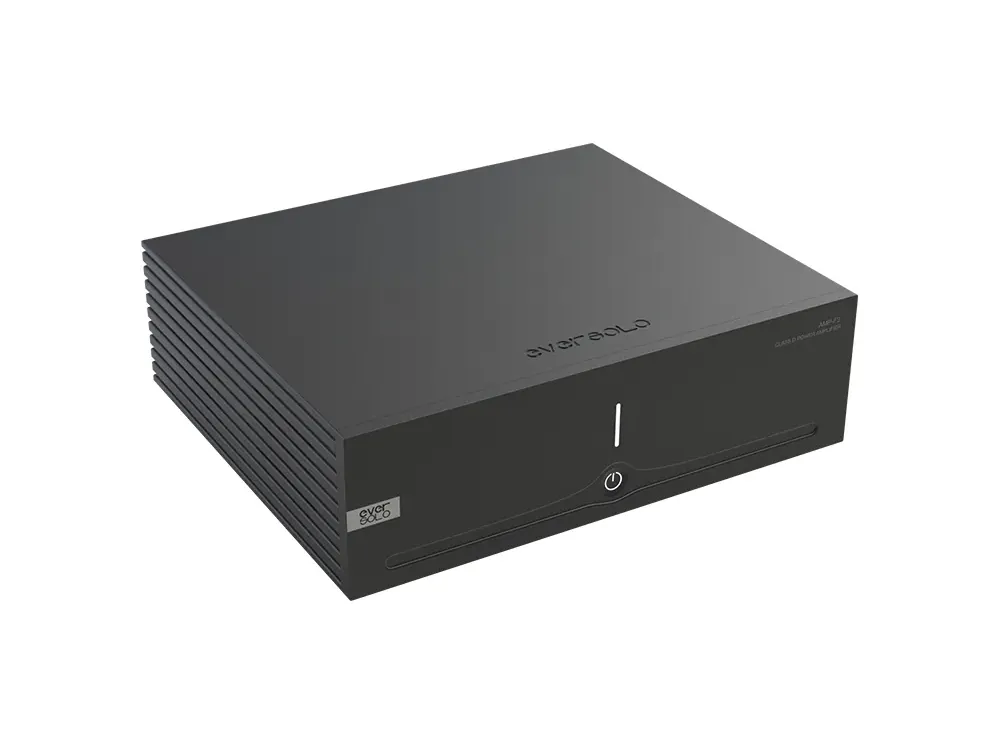

EVERSOLO AMP F2 Power Amplifier

2 Channel Stereo Class D Power Amplifier

$1,249.00

Specification

Output Power	145W RMA at 8 Ohms (1% THD) 250W RMS at 4 Ohms (1% THD) 280W RMS at 4 Ohms (1% THD Bridged) 450W RMS at 2 Ohms (1% THD Bridged)
Gain	21.5dB
Channel Quantity	2 (Stereo) 1 (Bridged)
Amplifier Type	Class D
Frequency Response	10Hz-20kHz -1dB
Maimum Current Output	16.5A per channel 33A Bridged
Signal to Noise Ratio (SNR)	110dB "A" weighted at 4 ohm 250W
THD	0.003% 10W at 1kHz
Input Terminals	2x RCA 2x XLR 1x 3.5mm Trigger (5v-12v)
Input Impedance	11kOhm (RCA) 22kOhm (XLR)
Input Sensitivity	2.7V
Output Terminals	2 Pairs Beryllium Copper Binding Posts made by Starke Sound
Output Impedance	0.136 Ohms (5Hz to 100kHz)
Minimum Load Impedance	0.8 Ohm
True Balance Circuit	Yes
Thermal Output	65 BTU / hr
Power Consumption	<0.5W Standby <14W Idle 900W PEAK
Control Operation	3.5mm Trigger In (5V-12V) 3.5mm Trigger Out
Cabinet	Black Aluminium
Dimensions	270mm Width 228mm Depth 80mm Height
