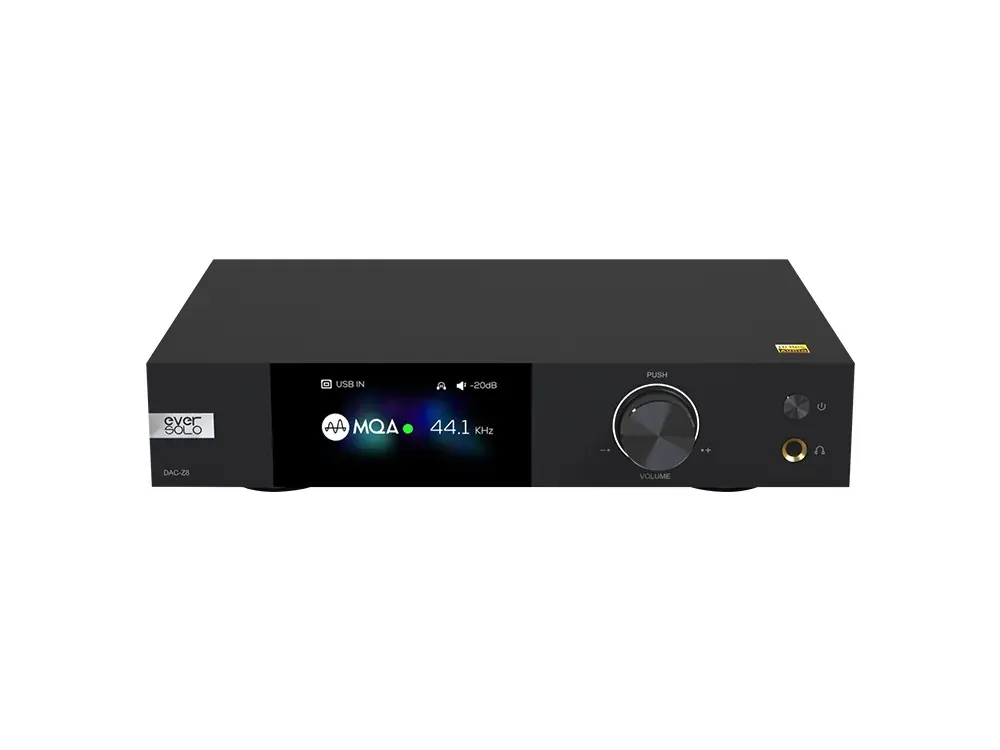

EVERSOLO DAC Z8 Digital to Analogue Converter
Digital to Analogue converter with screen, balanced output, and headphone amplifier.
$1,199.00
Features-
ESS Sabre flagship ES9038Pro 32 bits D\A converter chip. -
The 3rd generation XMOS XU316 with higher performance and faster speed. -
High precision, low jitter dual clock oscillators synchronous processing. -
OPA1612*8 I/V operational amplifier circuit, 8-channel shunt compensation technology. -
Up to DSD512 Native, PCM768KHz@32Bit decoding. -
Optical, Coaxial and USB support MQA full decoding and rendering. -
Qualcomm QCC5125 Bluetooth 5.0 module. -
Fully balanced audio architecture, differential amplifier circuit and professional calibration. -
High-performance headphone amp output, 16-300 ohm headphone driver. -
3-inch LCD screen, with diverse VU meter modes. -
Low ripple power supply to ensure a purer power source. -
Exclusive mobile phone controller APP for global control.
|
Specification| Display Screen | | | Chassis | | | DAC | | | Audio Processor | | | OPA Chip | | | Power Supply | - Low noise switching power supply
| | Bluetooth Audio Input | - Qualcomm QCC5125 Bluetooth module
- BT5.0 Support SBC/AAC Bluetooth protocol
| | USB-B DAC Input | - Compatible with Windows (7, 10), Mac, Android and IOS
- Up to stereo DSD512, PCM 768KHz 32Bit and MQA
| | USB-C DAC Input | - Compatible with Windows (7, 10), Mac, Android and IOS
- Up to stereo DSD512
- PCM 768KHz 32Bit
- MQA
| | Optical Audio Input | - Up to stereo PCM 192KHz 24Bit
- DSD64 Dop
- MQA
| | Coaxial Audio Input | - Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
| | Analog Audio Output | - Preamp output
- Headphone amp output
| | USB Port | - USB2.0*1（only for firmware upgrade）
| | Control Methods | - Remote control
- mobile APP control and knob control
| | Headphone Impedance | - Low gain mode: 16-32Ω
- High gain mode: 32-300Ω
| | XLR Audio Characteristics | - Output level(Vrms):
- THD+N@A-wt:
- 0.000062%@1kH （-124dB@1kHz）
- THD+N@No-wt：
- 0.000069%@1kHz（-123dB@1kHz）
- Noise@No-wt:
- SNR @No-wt:
- Frequency response:
- Crosstalk:
- DNR @No-wt:
| | RCA Audio Characteristics | - Output level (Vrms):
- THD+N@A-wt:
- 0.000086%@1kHz(-121dB@1kHz)
- THD+)@No-wt:
- 0.000097%@1kHz(-120dB@1kHz)
- Noise @No-wt:
- SNR @No-wt:
- Frequency response:
- Crosstalk:
- DNR@No-wt:
| | Headphone (Low Gain Mode) | - Output level(Vrms):
- Maximum undistorted power:
- THD+N@A-wt:
- 0.00015%@1kHz(-116dB@1kHz)
- THD+N@No-wt:
- 0.00018%@1kHz(-115dB@1kHz)
- Noise @No-wt:
- SNR@No-wt:
- Frequency response:
-
DNR @No-wt:
| | Headphone (High Gain Mode) | - Output level(Vrms):
- Maximum undistorted power:
- THD+N@A-wt:
- 0.00016%@1kHz(-116dB@1kHz)
- THD+N@No-wt:
- 0.00016%@1kHz(-116dB@1kHz)
- THD+N@No-wt:
- 0.00016%@1kHz(-116dB@1kHz)
- SNR@No-wt:
- Frequency response):
-
DNR @No-wt:
| | Power Input | | | Rated Power | | | Dimensions | - 270mm Width
- 187mm Depth
- 50mm Height
|
|
