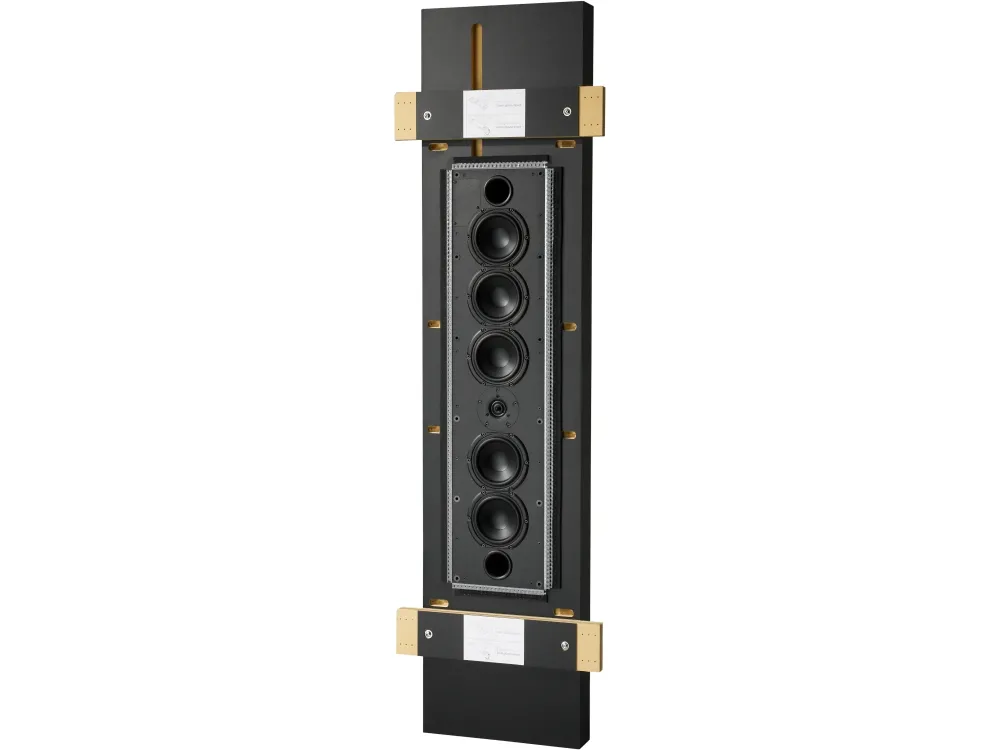

KRIX EPIX In Wall Speaker

Appreciate the stunning realism of a high-end floorstanding or centre channel speaker with this uniquely designed in-wall speaker.

$2,895.00

*Note: Colour selection determines grille colour ONLY

For those who are serious about their sound experience, the Epix provides the high fidelity of Krix’s award-winning Neuphonix Mk2 and Epicentrix Mk2 speakers, in a uniquely designed package.

Designed to fit into a standard 90mm frame, you can enjoy the stunning realism of high-end floorstanding speakers without the clutter.

With a fully enclosed back box that maintains acoustic integrity and stops rear sound radiation from the drivers transferring to adjoining rooms, the Epix can be used in home theatre rooms, or multi-functional living environments in both stereo and surround sound systems.

Its 3-way design features four custom-designed 130mm bass drivers, each with oversized magnets. An extensive crossover network – featuring only low tolerance, high grade components – beautifully matches the 130mm dedicated midrange and the high-grade 26mm ring radiator tweeter, which delivers an extended frequency response to 40kHz.

The Epix provides the complete in-wall speaker for discerning listeners, available in vertical or horizontal configurations. Complete with mounting hardware, plasterboard edging, and a solidly braced enclosure, installation is in two stages. The back enclosure is supplied with a fake baffle so it can be installed at frame stage. Once the room is finished and dust-free, the fake baffle is removed and the baffle housing the drivers and crossover is mounted into the back enclosure.

For the ultimate sound experience at home, play it through Krix.

Specification
Frequency Range
  • 40Hz–40kHz in-room response
Power Handling
  • 50–300 Watts RMS recommended amplifier power
Sensitivity
  • 90dB for 2.83 volts at 1 metre
Impedance
  • Nominally 6 Ohms
  • Minimum 4.3 Ohms
Configuration
  • 3-way
Enclosure Type
  • Bass reflex
  • Front vented
Low Frequency Drivers
  • 4 x nominal 130mm (5”) coated paper cones
  • 26mm (1”) voice coil wound on high powered aluminium former provides enhanced linearity
  • Over-sized magnet delivers low distortion
Mid Frequency Driver
  • 1 x nominal 130mm (5”) coated paper cone
  • 26mm (1”) voice coil wound on high powered aluminum former
  • Using copper shorting ring and oversized magnet for low distortion
High Frequency Driver
  • 26mm dual concentric diaphragm with wave-guide centre plug for controlled directivity
  • Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion
Input Terminals
  • Concealed spring terminals
Dimensions
  • Back box
    • 1700mm Height
    • 390mm Width
    • 80mm Depth
  • Front baffle
    • 962mm Height
    • 225mm Width
    • 18mm Depth
  • Grille
    • 995mm Height
    • 258mm Width
    • 13mm Depth
Weight
  • 27kg each
