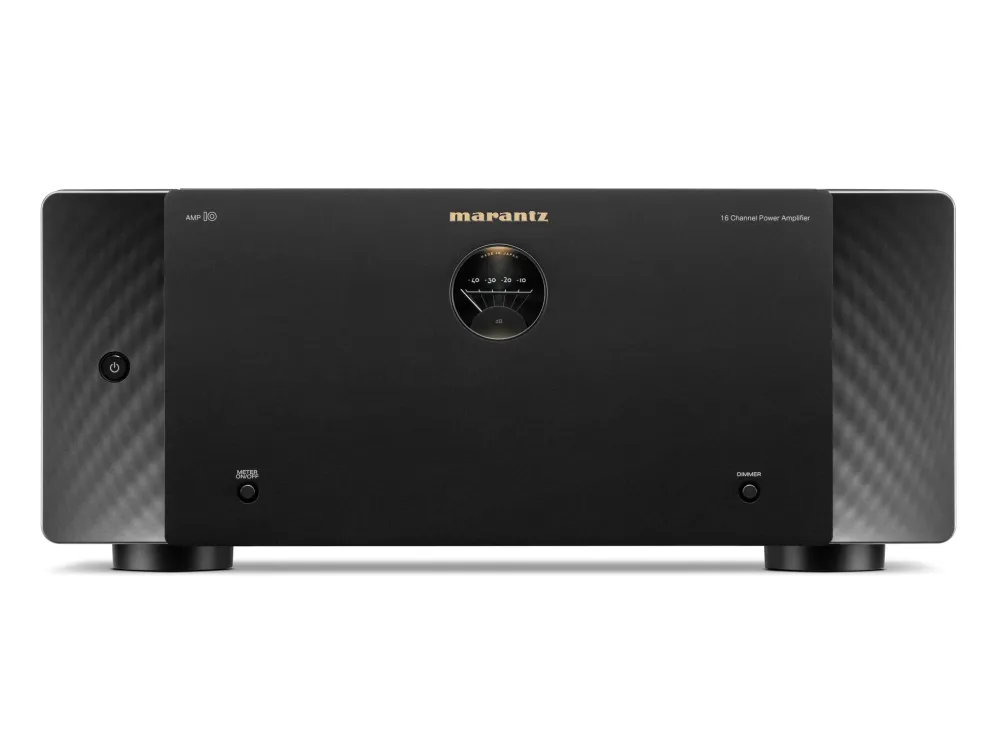

MARANTZ AMP10 16 Channel Power Amplifier

REFERENCE 16 CHANNEL AMPLIFIER WITH 200W AND CUSTOM HDAM

MADE IN JAPAN

Reference 16-channel 200-watt-per-channel amplifier. Pair with AV 10 to create an elite-level home theatre. Marantz HDAM, Current Feedback Amplification, and balanced line level input.

$12,800.00

The AMP 10 is an extraordinarily powerful 16-channel amplifier. Combine it with the AV 10 for a top-class home theater system.

  • The AMP 10 delivers 200 watts per channel into 8 ohms or 400 watts per channel into 4 ohms.
  • It is based on Marantz's own HDAM technology and a newly developed Class D amplification.
  • Detailed and captivating sound for a special listening experience 200 watts per channel into 8 ohms, 400 watts per channel into 4 ohms 16 channels, enough for even very large home theaters.
  • The subtle side lighting throws a soft shimmer onto the front of the amplifier.
  • The aesthetic analog meter shows the power output.
  • The perfect partner for the Marantz processor AV 10.

Features

Exquisite Design

A modern expression of timeless design principles, AV 10 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Soundmaster Tuned

The Marantz Sound Master meticulously tuned AV 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Technology Master

AV 10 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Specification

Multi-Room CI

Control Interfaces

  • RS232
  • IR Flasher Input
  • Marantz Remote Bus

12V Trigger

  • 3.5mm In
  • 3.5mm Out

Others

Front Display

  • Level Meter

Auto Power Off

  • Yes

Inputs and Outputs

Main Amplifier in

  • 16 Channel RCA inputs
  • 16 Channel XLR Inputs

Speaker Terminal

  • SPKT-1+

Number of Speaker Terminals

  • SPKT-1+

Bridging

  • Bi-Amp Drive
  • BTL Drive (Can pair 8 pairs of channels)

Chassis

  • Copper Plated

Specifications

Number of Power Amplifiers

  • 16

Power Output

  • 200W (8 ohm, 1 kHz, 0.05% 2ch Drive)
  • 400W (8 ohm, 1 kHz, 0.05% 2ch Drive) BTL
  • 400W (4 ohm, 1 kHz, 0.7% 2ch Drive)
  • 200W (8 ohm, 1 kHz, 0.7% 5ch Drive)

Power Guarantee

  • 70% Guarantee (Normal, Bi-Amp, BTL)
  • 100% Guarantee (Normal, Bi-Amp)

General

Metal Front Panel

  • Yes

Power Consumption

  • 0.2W Standby
  • 140W Idle
  • 500W PEAK

Maximum Dimensions

  • 442mm Width
  • 488mm Depth
  • 188mm Height

Weight

  • 19.9kg

What's in the Box

  • Marantz AMP10
  • Quick Start Guide
  • AC Cable
  • Amp Control Cable
  • Remote Control Cable
  • SP Terminal Wrench
