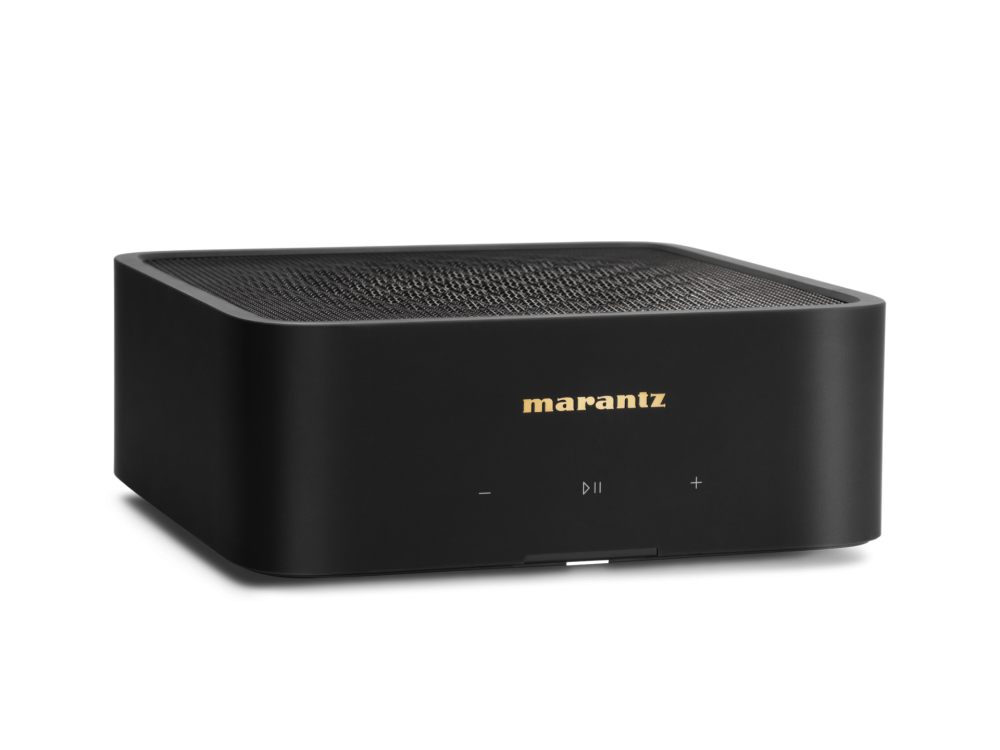

MARANTZ Model M1 Stereo Network Amplifier

The Marantz MODEL M1 is not just a wireless streaming amplifier; it's a gateway to a world of high-quality audio and entertainment.

Experence the difference for yourself and rediscover the joy of listening to music and watching TV with the MODEL M1.


MADE IN JAPAN!

$1,600.00

2.1 Ch. 100W per channel Wireless Streaming Amplifier with HEOS® Built-in
Wireless Streaming Amplifier

• 2.1 channel output allows for loudspeaker and subwoofer connection
• 100W per channel high power and crystal clarity
• Switching, digital end-to-end amplifier topology
• Enhanced performance with Marantz Musical Digital Filtering (MMDF)
• Effortless streaming with HEOS® Built-in, WiFi, AirPlay 2, Spotify Connect
• Toslink optical audio and HDMI eARC digital audio inputs
• Digital decoding with Dolby Digital+
• Sound Master tuned, designed, and built by Shirakawa Audio Works
in Japan
• Small footprint, rack-mountable, high-end materials, and refined Marantz
industrial design
• 1 pair RCA analog audio inputs with gold-plated brass terminals

Features

True Marantz Power


MODEL M1’s 100W per channel of high-quality, low-distortion amplification delivers pristine sound anywhere, while a subwoofer output delivers room-filling scale in larger spaces.

High resolution Digital Direct


However you choose to stream your high-resolution music, MODEL M1 has you covered, with support for HEOS, AirPlay2, Bluetooth, Spotify Connect, and more.

Marantz Multi Room

The expansive feature set yet diminutive size of M1 makes it the ideal partner for multi-room listening.

Marantz Musical Digital Filtering

MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound.

TV sound: Maratz quality, Soundbar simplicity

Unveil superb sound from movies and TV programs with MODEL M1 using HDMI eARC and onboard Dolby Digital+ processing.

Specification

Amplifier

Power Amplifier Rated Output

  • 100W+100W (8Ω/ohms, 20 Hz to 20kHz, T.H.D. 0.05%)

  • 125W+125W (4Ω/ohms, 1 Hz T.H.D. 0.05%)

Loudspeaker Impedance

  • 4 – 16 Ω/ohms

Audio Inputs / Outputs

Loudspeaker Binding Posts

  • 4-way binding posts

Digital Inputs

  • HDMI (eARC)

  • TOSLINK

Analogue Inputs

  • RCA L/R

Subwoofer Out

  • RCA Mono

Audio Options

Channel  Assignments

  • Stereo

  • Dual Mono

Balance

  • -15dB to +15dB

Adjustable High Pass / Low Pass Filters

  • 40-250 Hz / 40-120 Hz

EQ (-5dB to +5dB)

  • Bass
  • Treble

Sound Modes

  • Stereo, Direct, Virtual
  • Dialog Enhancer, Night Mode

 TV Sound Grouping

  • YES

Audio Format Support

Decoding

  • Dolby Digital +
  • Dolby Digital
  • LPCM
  • DSD

PCM

  • Stereo
  • Multi-channel

Stereo File Formats (HEOS network share or USB)

  • WMA: up to and including 192kbps
  • AAC & MP3:up to and including 320kbps
  • WAV, ALAC, FLAC: up to and including 24-bit/192kHz
  • DSD: 2.8 MHz. 5.6 MHz

 Streaming Technologies

Bluetooth

  • BT 5.X (Receive Only)

Airplay

  • Airplay 2

Spotify

  • Spotify Connect

Music Services and Sources

Music Services Supported

  • Spotify Connect
  • TuneIn
  • Amazon Music
  • Tidal Connect, Tidal HiRes
  • Deezer, Deezer HiFi
  • Mood:Mix
  • Sony Hi-Res
  • SoundCloud

Music stored on Mobile Device

  •  Yes (iOS, Abdroid or Kindle Fire)

NAS (Network Attached Storage)

  • Network Share
  • DLNA

USB Storage Device Playback (Formated Drives)

  • FAT32
  • NTFS

Networking & Control

Connectivity (Wired & Wireless)

  • Ethernet
  • Dual Band
  • 802.11 a/b/g/n/ac

IR Input

  • 3.5mm

IR Learning

  • Yes

Control System Compatibility via TCP/iP

  • Crestron
  • Control 4
  • AMX

 HEOS App

  • iOS
  • Android

General

User Interface

  • Volume up / down
  • Play / Pause
  • Multi coloured LED stsyus indicator
  • Connect Button (rear)
  • Bluetooth Buttom (rear)

Dimensions (W x D x H)

  • 217 x 239 x 84

Weight (kg)

  • 2.2 kg
