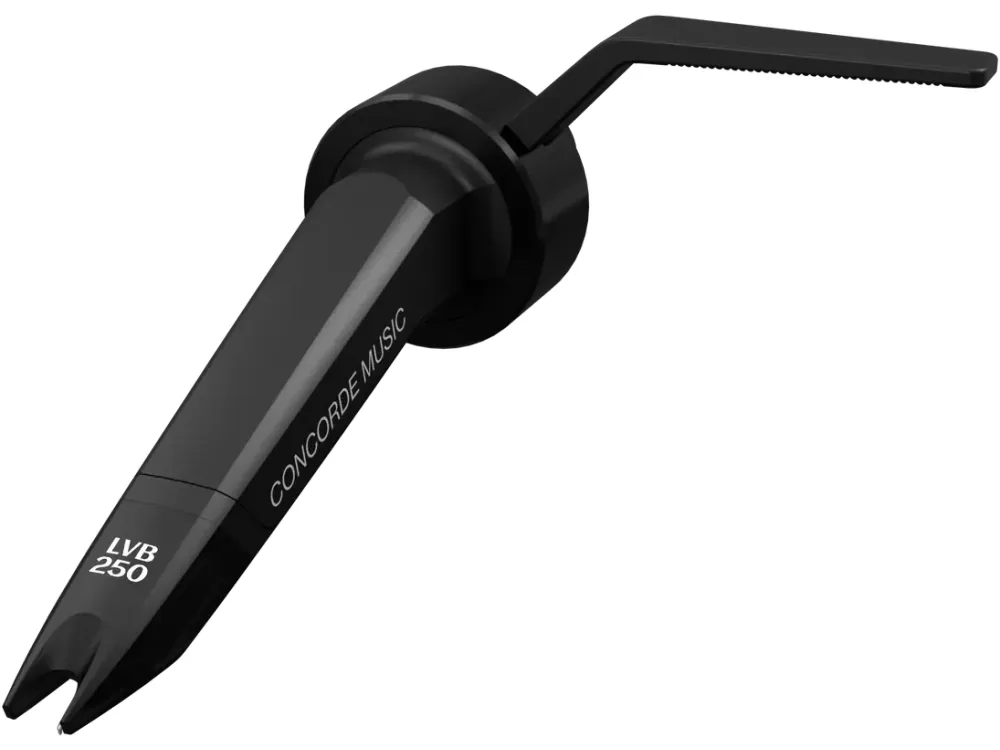

ORTOFON Concorde Music Black LVB 250 Moving Magnet Cartridge

Premium Moving Magnet cartridge

$1,799.00

Concorde Music Black

Experience unrivaled accuracy and fidelity with the Concorde Music Black LVB 250. The Concorde Music Black LVB 250 features a Nude Shibata stylus on a Boron cantilever making it the most premium Ortofon Moving Magnet cartridge on the market.

The Concorde Music series

Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

Award winning cartridge design

Iconic design

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.

Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.

Stylus

The Concorde Music Black LVB 250, featuring a Nude Shibata stylus on an Boron cantilever, offers an upgrade from the Concorde Music Bronze.

The shape of the Shibata distinguish itself by having a narrow and long contact surface. The Shibata is very close to the original cutting stylus which ensures the most accurate reproduction, low distortion and exteded frequency range. The use of an extremely stiff and lightweight Boron cantilever adds remarkable transparency, speed, and responsiveness.

Unique in-house rubber production

Rubber suspension

A crucially important and vital part of a phono cartridge overall performance is the stylus rubber suspension.

Exclusive Ortofon rubber compounds are used for the stylus suspensions in the Concorde Music Blue, carefully produced at the inhouse rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.

Precise and dynamic sound image

Coil system

The Concorde Music features Ortofon's quad-coil generating system with four split pole pins. Silver-plated oxygen-free copper is chosen for the quad-coil system, along with four Ortofon split pole pins.

This results in exceptional channel balance and separation, delivering precise and dynamic sound. With a 6 mV output, it offers lifelike sound with exceptional clarity and fidelity, capturing every detail.

Perfect fit for S-shaped tonearms

Compatibility

Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet connector, which makes it compatible with all S-shaped tonearms.



Specification
Channel balance at 1 kHz
  • 1 dB
Output voltage at 1 kHz, 5cm/sec
  • 6mV
Channel seperation
  • 26dB at 1kHz
  • 20dB at 15kHz
Frequency response
  • 20 Hz - 20 kHz (+2 / -0 dB)
Tracking ability at 315Hz at recommended tracking force
  • 80 µm
Compliance, dynamic, lateral
  • 15 µm/mN
Stylus type
  • Shibata diamond on Boron cantilever
Stylus tip radius
  • r/R 6/50 µm
Tracking force, recommended
  • 1.8 g
Tracking angle
  • 20°
Internal impedance, DC resistance
  • 1.27 kΩ
Cartridge colour
  • Black/Black
Cartridge weight
  • 18 g
Recommended load resistance
  • 47 kΩ
Internal inductance
  • 815 mH
Recommended load capacitance
  • 150-300 pF
