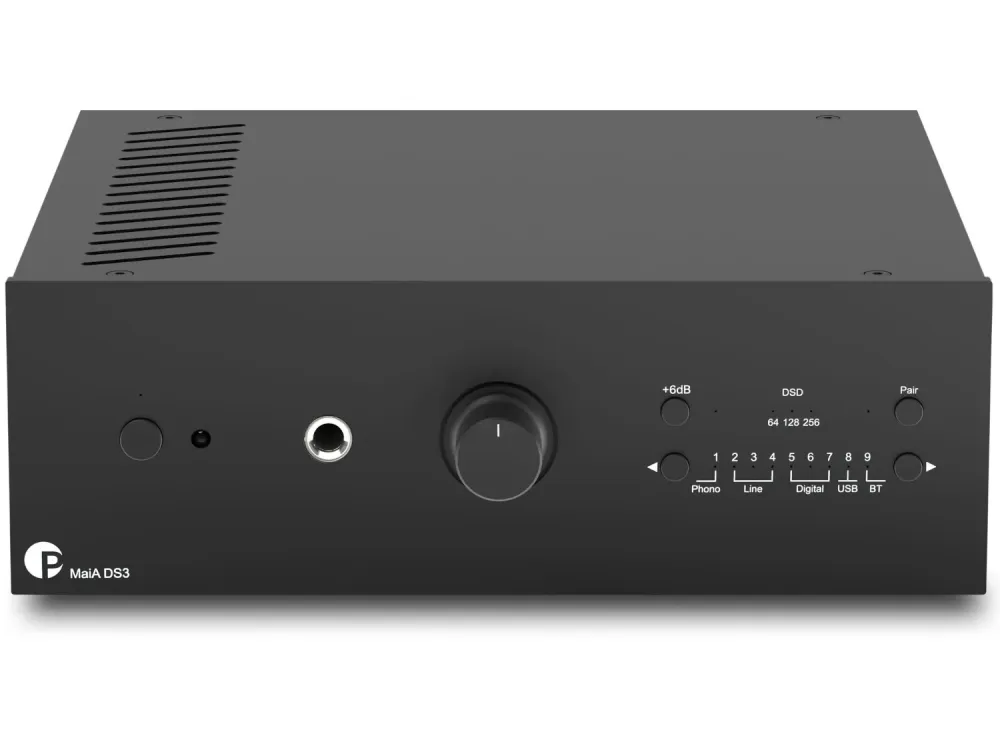

PRO-JECT Maia DS3 Compact Integrated Amplifier

Stereo integrated amplifier with 9 inputs

Made In Europe

$1,799.00 Regular Price $1,999.00

OFTEN OVERLOOKED, BUT NEVER OVERHEARD

The MaiA DS3 (My audio integrated Amplifier) is our new reworked all-in-one compact amplifier solution. It combines both, analogue and digital inputs to suit all different sources. With its 140 watts per channel at 4 ohms you can easily power your favourite speakers. The whole electronics are packed into a beautiful machined full aluminium case which protects it against outer interferences.

Versatile input & output options

The MaiA DS3 offers nine inputs. Ready for digital or analog sources, wired or wireless – you’re covered. The phono section can handle MM, MI, or high output MC cartridges. Hook up your tuner or any other analog device to one of the three line-level RCA inputs. The DAC section allows a coax and two optical connections, as well as an USB input. The high definition aptX™ HD Bluetooth 5.0 wireless input allows streaming your favorite music via your phone. The variable RCA outputs also allow you to include a subwoofer or another power amplifier in your setup. Use the fixed output to distribute the audio signal to another device unaffected by the volume control to feed an audio recorder, for example.

Remote Control

Comfortable listening

With the supplied remote control, you are able to change the volume with the motor driven potentiometer and switch your input.

aptXâ„¢ HD

Bluetooth 5.0

aptXâ„¢ HD with our new Bluetooth 5.0 chip will allow you convenient high resolution streaming from your smartphone.

Handmade in EU

Since 1991

Made in Europe by technicians, engineers and designers with decades of experience. Expert craftsmanship. Sustainable products with a long lifetime. Audiophile audio performance.

Features
  • NEW Powerful 140 watts per channel at 4 ohms
  • NEW Magnetic side panels available separately
  • NEW PCM 1795DB 32bit/192kHz Delta-Sigma DAC
  • NEW BT 5.0 receiver with aptX, aptX HD, A2DP profile
  • 9 different analog & digital inputs
  • Sub output & variable output
  • Phono input - MM & MC capable
  • Dual mono design
  • XMOS asynchronous USB 24bit/192kHz
  • DSD capability (DSD64, DSD128; DSD256)
  • Headphone output 2 x 430mW at 32ohm (1%THD)
  • Trigger in- & output
  • Heavy aluminium casing protects against interference
  • Remote control included
  • Available in silver or black
  • Made in Europe
Specification

Power Output

  • 2x 80W at 8 ohms (1%THD)
  • 2x 140W at 4 ohms (1%THD)

Frequency Response

  • 20Hz-20kHz
  • <+/- 0.3dB at 20kHz

SNR

  • 97dB (105 dB - ‚A‘ weighted) at 1kHz

THD

  • < 0.01% at 10W / 8 ohms

Headphone Amp Output

  • 2x 430mW at 32 ohms (1%THD)

Line Level Inputs

  • 3 pair RCA (sensitivity: 860 mV)

Phono Input

  • 1 pair RCA (for MM and MC cartridges)

Phono Input Impedance

  • MM 47k ohms
  • MC 100 ohms

Phono Input Gain

  • MM 40dB
  • MC 60dB

USB Input

  • USB Audio Class 2 (requires USB 2.0 or higher)

PCM Sample Rate Support

  • up to 192kHz / 24 bit

DSD Support

  • DSD64
  • DSD128
  • DSD256

BT Version and Codec

  • BT 5.0
  • aptX, aptX HD, A2DP profile

Trigger In/Out

  • 12V on/off detector

Power Supply

  • 36V/5.5A DC
  • Outboard Power Supply

Standby Power Consumption

  • < 0.5 watts

Dimensions

  • 206mm Width
  • 240mm Depth (252 with sockets)
  • 71mm Height

Weight

  • 1850g without power supply
