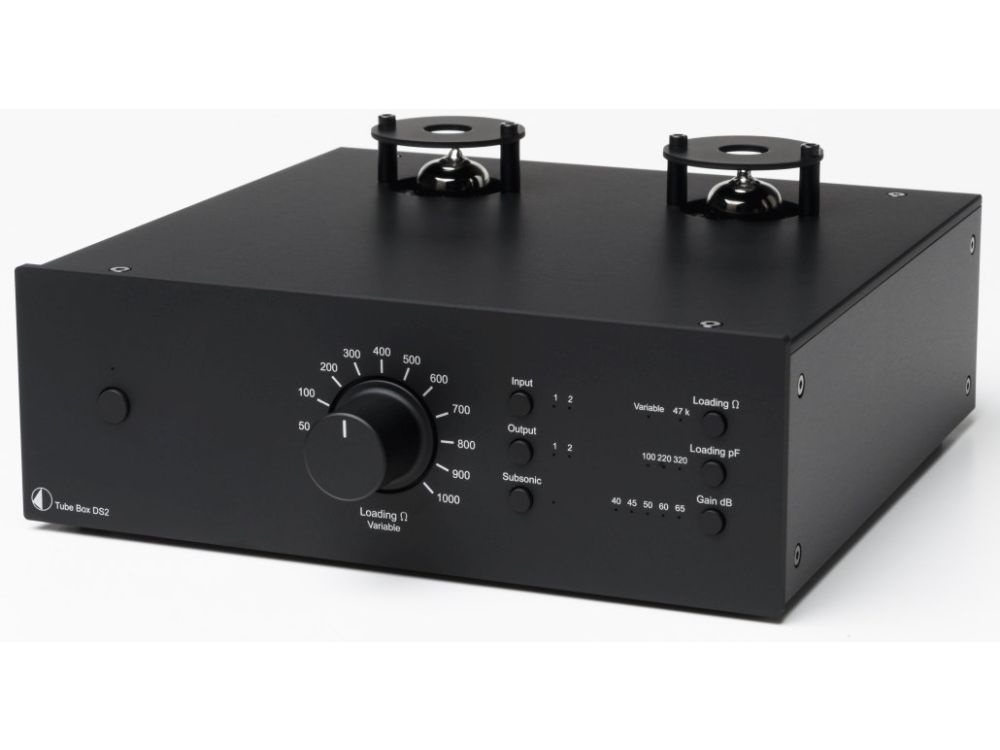

PRO-JECT Tube Box DS2 Phono Preamp

Premium phono preamplifier with tube output and highend sound!

$1,304.00 Regular Price $1,449.00

Please Note: Phono Pre-Amp's require RCA cables to connect to your amplifier. We have a wide selection of cables and interconnects available HERE.


This precision tube phono preamplifier benefits from outstanding circuit technology from Dr. Sykora and uses high-quality components. Compatible with both MM and MC cartridges. It offers connection for two turntables plus two selectable line outputs and a continuously variable selection of input impedance for low output MC cartridges while playing a record! Other features include input capacitance for MM cartridges and switchable subsonic, that prevents your amplifier and speakers of ultra low rumble below 20Hz. All components including tube output and polypropylene capacitors are audiophile-grade and guarantee a breathtaking sound experience. A perfect upgrade for ambitious vinyl lovers!

Features
  • Suitable for MM and MC cartridges
  • Precise RIAA equalisation
  • Ultra low noise circuitry
  • Selection between 2 phono inputs & 2 line outputs
  • Dual mono circuitry for optimized channel separation
  • Selectable input impedance (for MC: fix or variable)
  • Selectable input capacitance (for MM)
  • Selectable subsonic filter
  • Gold-plated RCA in & outputs
  • Sandwich alu/metal casing protects from vibrations and electromagnetic interference
  • Finishes: silver or black, with/without wooden side panels (rosenut, walnut, eucalyptus)
Specification

Tubes

2 x ECC83 (12AX7)

Input impedance

Variable 10-1000 Ohm, fix 47 kOhm

Capacitance

100 / 220 / 320 pF

Gain MM / MC

40 / 45 / 50 / 60 / 65 dB

Output voltage typically

500 mV/1kHz at 5mV/1kHz (at 40dB)

SNR

88 dBA

THD

< 0.04%

RIAA curve accuracy

+/- 0.2dB/20Hz - 20kHz

Subsonic filter

20Hz @ 12dB/octave

Inputs

2 x Phono (RCA)

Outputs

2 x Line (RCA)

Power supply

18V/1000mA DC

Power consumption max

490mA DC / < 0.5 Watt Standby

Dimensions B x H x T

206 x 91 x 227 mm (Alu)



240 x 93 x 227 mm (Wood)

Weight (without power supply)

1500 g (Alu)



1960 g (Wood)
