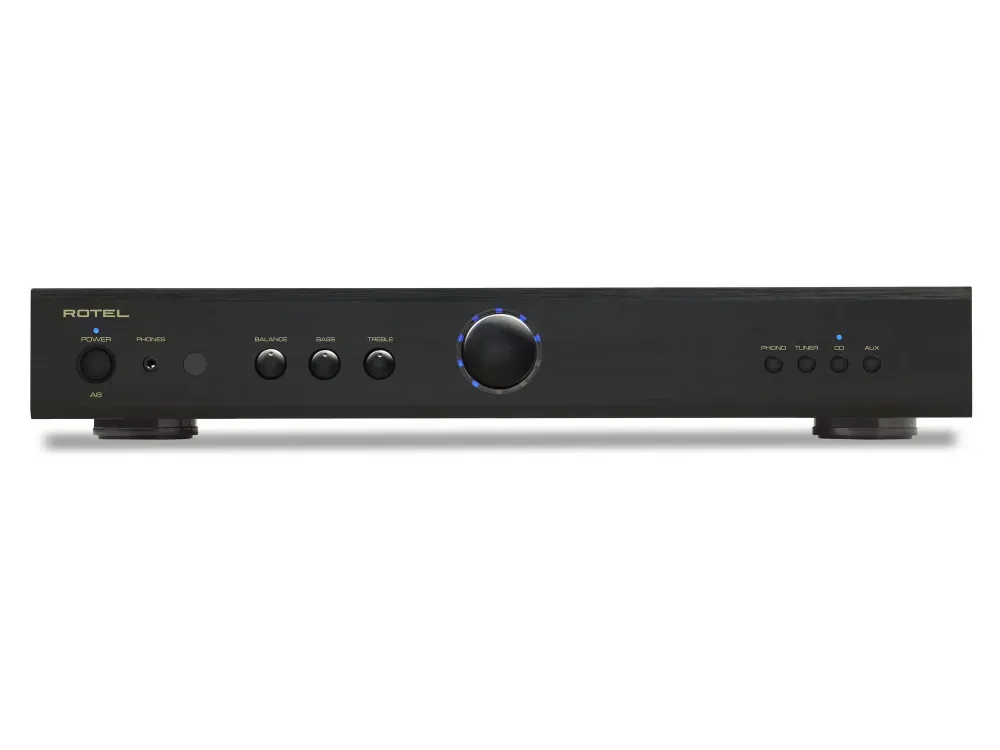

ROTEL A8 Integrated Amplifier

The A8 Integrated Amplifier blends power, size, efficiency, and value for music lovers yearning to enhance their musical journey. Engineered with a robust Rotel-crafted toroidal transformer driving 40 Watts per channel of Class A/B potency into 4 ohms featuring three RCA analog inputs and a Moving Magnet Phono stage tailored for vinyl enthusiasts.

$649.00

The A8 Integrated Amplifier is the perfect fusion of power, size, efficiency, and value tailored for music enthusiasts.

Built around an in-house manufactured, high current, Rotel-crafted toroidal power transformer, the A8 delivers a commanding 40 Watts per channel of Class A/B power into 4 ohms. The high efficiency output drive transistors ensure deep bass energy is controlled with ultimate precision while comfortably maintaining composure at all listening levels.

The A8 features three line-level RCA inputs connecting your favorite analogue sources complemented by a Moving Magnet compatible Phono Stage to spin classic vinyl albums. For private listening, a front panel 1/8” headphone jack is also included.

The included IR remote ensures precise and seamless operation of the volume level and selection of the desired source input all from your favorite listening position. The remote also conveniently includes CD transport control functions supporting Rotel CD players.

Personal selection of LED volume indicator color allows the A8 to be tailored to both mood and environment. Choose from Red, Green, Blue, or Purple LED colors fitting comfortably into any environment. Get hands-on with the front panel Bass, Treble and Balance controls to personalize the listening experience with your music.

Rear panel 5-way speaker binding posts provide the ultimate installation flexibility and connection to your loudspeakers.

Available in both stylish black and sophisticated silver variants, the A8 integrates the power, versatility, and elegance of your audio experience.

Features
  • 2 x 40 Watts of robust
    power, 4 Ohms
  • Includes remote control
  • Moving Magnet Phono input for turntable connection
  • Class AB amplifier design
  • High current power supply
Specification
Dimensions
  • 430mm Width
  • 347mm Depth
  • 73mm Height
Weight
  • 5.8kg
Front Panel Height
  • 60mm
Power Requirements
  • 230V
  • 50Hz
Power Consumption
  • 110W PEAK
  • <0.5W Standby
BTU Rating
  • 340BTU/h (4Ω, 1/8th power)
Power Output
  • 30 W/ Ch (8 Ω)
  • 40 W/ Ch (4 Ω)
Total Harmonic Distortion
  • <0.03%
Frequency Response
  • Line Level Inputs:
    • 10 Hz - 100k Hz, -0.5 dB, +0 dB
  • Phono Input:
    • 20Hz - 20k Hz, -0.5 dB, +0 dB
S/N Ratio (IHF "A" Weighted)
  • Line Level Inputs:
    • 90 dB
  • Phono Input:
    • 80 dB
Intermodulation Distortion
  • <0.03% (60 Hz:7k Hz, 4:1)
Damping Factor
  • 80
Input Sensitivity
  • Line Level Inputs:
    • 180 mV
  • Phono Input (MM):
    • 2.5 mV
Input Impedance
  • Line Level Inputs:
    • 60k Ω
  • Phono Input (MM):
    • 40 kΩ
Input Overload
  • Line Level Inputs:
    • 4 V
  • Phono Input:
    • 50 mV
Tone Controls
  • Bass:
    • ±6 dB at 100 Hz
  • Treble
    • ±6 dB at 10kHz
