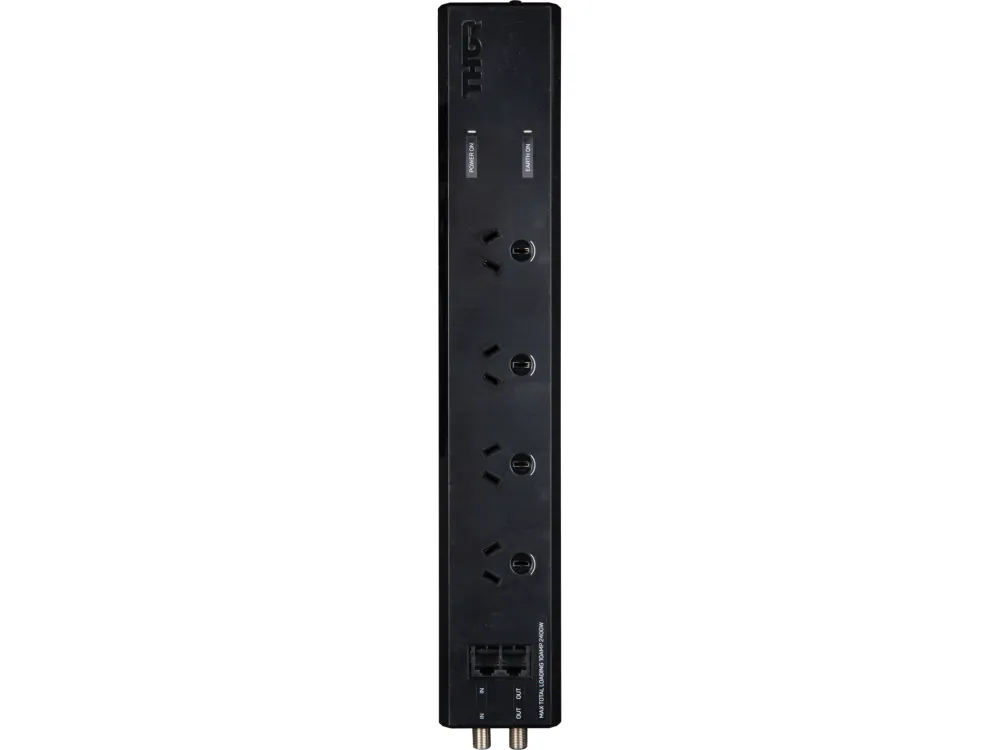

THOR Smart Protect E1/45A 4 Way Filtered Power Board

SMART TECHNOLOGY POWER PROTECTION AND FILTRATION



Joule Bank Saving TechnologySmart Buzzer10% More FiltrationFireproof MOVUp to $100K Warranty



$149.00

CLEVER PROTECTION FOR SMART TECHNOLOGY

SmartProtect 4 does more than protect your valuable electronic equipment. The space saving design now means you can have surge protection and filtration anywhere.

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound.



Protects:

OLED/LCD TVHi-Fi and Home TheatreActive/Passive SpeakersInternet
Computers (Laptops/Tablets)Printers and ScannersSecurity SystemsAny Device Connected to Power

INSIDE THE BRAIN

All serious power protection diverts excess energy to earth first. If there is good earth connection then the protector will last longer. E1/45S has an earth detection LED for this reason. SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.

Features
  • 4 Protected Outlets
  • Antenna Protection
  • Data/Voice Protection
  • Large Plug Adaptor Spacing
  • 1.2M Cable Length
  • Fire Retardent
  • 1 Nano Second Reaction Time
  • 6 Year Replacement Warranty
Specification
Dimensions
  • 360mm Length
  • 60mm Width
  • 35mm Height
Supply Voltage
  • 230-240V AC
  • 50Hz
Maximum Current Rating
  • 10A
  • 2400W (VA)
Reaction Time
  • Less than 1 nanosecond
Clamping/Let Through Voltage
  • 510VAC
Maximum Energy Dissipation
  • 2115 Joules
    • Equivalent to 205 Joules using UL1449 standard
Protection Modes
  • All 4 mains outlets protects on all 3 conductors
    • Active/Neutral
    • Active/Earth
    • Neutral/Earth
Noise Reduction Filter Type
  • EMI
  • RFI
Connections
  • 1 AU Mains Input (Fixed Cable)
  • 4 AU Mains Outlets
  • 1 F Type Antenna In
  • 1 F Type Antenna Out
  • 1 RJ45 Data In
  • 1 RJ45 Data Out
Earth
  • Potential Rise Protection
  • Leakage range less than 1 Milliamp
Operating Conditions
  • Indoor
  • AC Mains
Operating Temperatures
  • -10°C / +60°C
Cable Length
  • 1.2m
