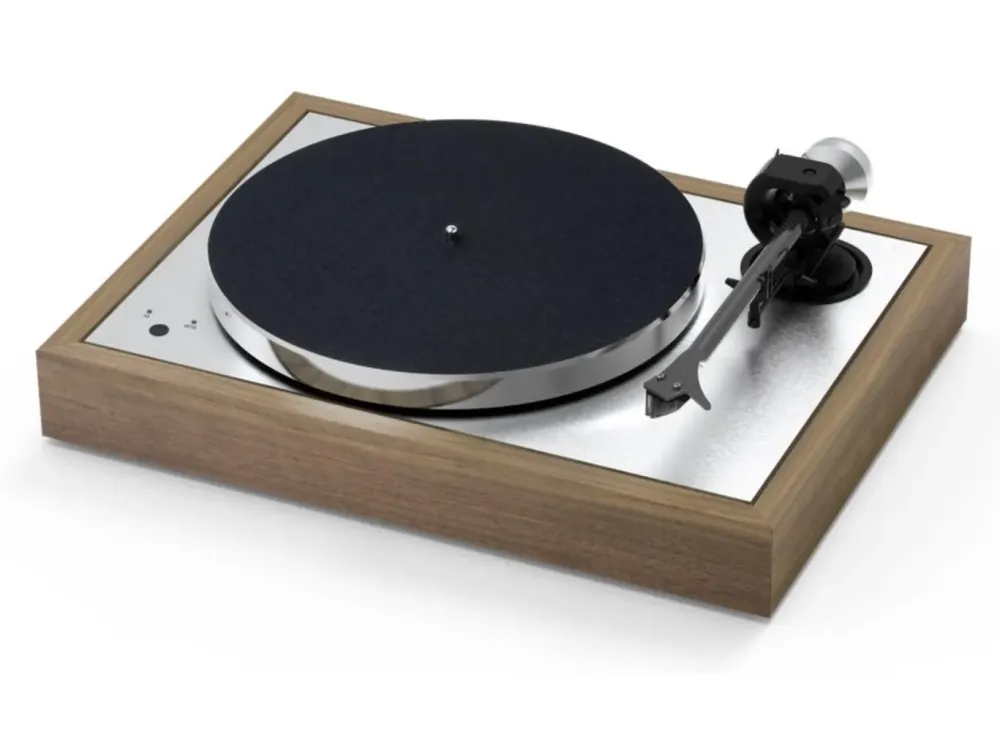

PRO-JECT The Classic EVO Turntable

Sub-chassis turntable with 9“ carbon/alu sandwich tonearm.

Fitted with Ortofon 2M Silver

$2,969.00 Regular Price $3,299.00

Fitted with Ortofon 2M Silver

The Classic meets the 175 VPO to melt design-ideas

The new Classic Evo is based on the successful EISA Award winner Pro-Ject The Classic. The main improvement is the sub-platter, where we used the experience we gained from designing the 175 – Vienna Philharmonic Recordplayer to add key changes to the Classic Evo. The main bearing construction we use is a similar system as the one on the Vienna Philharmonic Recordplayer. For improved comfort, an electronic speed change was built in, which lets you switch from 33 to 45 rpm (and vice versa) with the push of a button. Compared to the old Classic, we improved the subchassis; we tried to make it heavier and stiffer to reduce resonances. Isolating the platter and tonearm from the resonances of the motor and main plinth is the target. The heavy aluminium main platter construction utilises advanced thermo plastic elastomers (TPE) for optimising resonance behaviour.

The tonearm tube is made out of a sandwich of carbon and aluminium: carbon for stiffness and speed, alu for better damping. The bearing has been upgraded to the same type that is used on our Pro-Ject CC EVO tonearms. It facilitates frictionless vertical and horizontal movement, guaranteeing precise tracking across the entire duration of the record. The counterweight incorporates a TPE* damper which allows us to reduce the amplitude of the tonearm cartridge resonance frequency by 50%. As typical for Pro-Ject we offer also azimuth and VTA adjustment to use a variety of cartridges.

Features
  • Diamond cut precision alu sub-platter
  • Improved sandwich subchassis
  • Electronic speedcontrol (33/45 rpm)
  • Belt drive with electronic speed control 33/45 rpm
  • Height adjustable decoupling feet
  • Precision balanced TPE-damped aluminium-platter
  • Metal/MDF sandwich chassis floating on TPE suspension
  • 9” carbon/aluminium tonearm with MM & MC capability
  • Inverted EVO bearing design
  • Arm bearing housing of solid ring type. The massive outside ring is open to avoid resonances
  • Azimuth and VTA fully adjustable
  • TPE damped counterweight
  • Classic wooden chassis in 2 satin finishes (walnut, eucalyptus)
  • Dustcover included
Specification

Speed

  • 33 1/3 RPM
  • 45 RPM
  • 78 RPM
  • Electronic Speed Change

Drive Principle

  • Belt Drive

Platter

  • 300mm Aluminium

Main Bearing

  • Stainless Steel

Wow and Flutter

  • 33 1/3 RPM
    • ±0,10 %

  • 45 RPM
    • ±0,09 %

Speed Variance

  • 33 1/3 RPM
    • ±0,13 %

  • 45 RPM
    • ±0,10 %

Signal to Noise

  • 70dB

Tonearm

  • 9” carbon/aluminium sandwich tonearm

Effective Arm Length

  • 230 mm

Effective Arm Mass

  • 13,5 g

Overhang

  • 18 mm

Tracking Force

  • 10 - 30mN

Included Accessories

  • 15V 0.8A Power Supply
  • Dust Cover

Power Connection

  • 110/120V, 60Hz
  • 220/240V, 50Hz

Power Consumption

  • 5 Watts Max
  • <0.5 Watts Standby

Dimensions

  • 462mm Width
  • 131mm Height
  • 351mm Depth
  • Dimensions with lid closed

Weight

  • 10.5kg
